AD204JN
Kategori
Marka
Stok Kodu
ABHLMRV8
Fiyat
95,00 USD + KDV
*453,91 TL den başlayan taksitlerle!!
4.837,81 TL

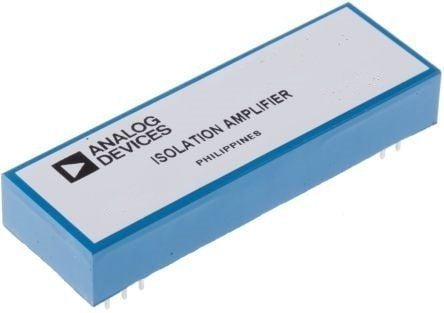

AD204JN
| Number of Channels: | 2 Channel |
| Isolation Voltage: | 750 Vrms |
| Isolation Type: | Galvanic Transformer-Coupled |
| GBP - Gain Bandwidth Product: | 5 kHz |
| CMRR - Common Mode Rejection Ratio: | 130 dB |
| Ib - Input Bias Current: | 30 pA |
| Vos - Input Offset Voltage: | 15 mV |
| Minimum Operating Temperature: | - 40 C |
| Maximum Operating Temperature: | + 70 C |
| Case: | DIP-10 |
| Amplifier Type: | Isolation |
| Input Voltage Range - Max: | 5 V |
| Shutdown: | No Shutdown |
| en - Input Voltage Noise Density: | 50 nV/sqrt Hz |
| Gain Error: | 0.5 % |
| Gain V/V: | 1 V/V to 100 V/V |
| Ios - Input Offset Current: | 5 pA |
| Maximum Input Resistance: | 2 GOhms |
| Output Current per Channel: | 2 mA |
| Vcm - Common Mode Voltage: | - 5 V to + 5 V |
